Wired
Appleton Uniprof™ Wired u-channel glass is available in 504 (Standard) surface textures. The stainless steel wire inlays run parallel to the long edge in order to hold the glass in place in the event of breakage.
Appleton Uniprof™ u-channel glass is suitable for use in protected circulation areas and at height.
Most of profiled glass types such as Appleton Uniprof™ Wave, Appleton Uniprof™ 1,7, Appleton Uniprof™ Amethyst, Appleton Uniprof™ Antisol are available as wired glass. New texture types Appleton Uniprof™ Macro and Appleton Uniprof™ Slim Line are also available in Opal finish.

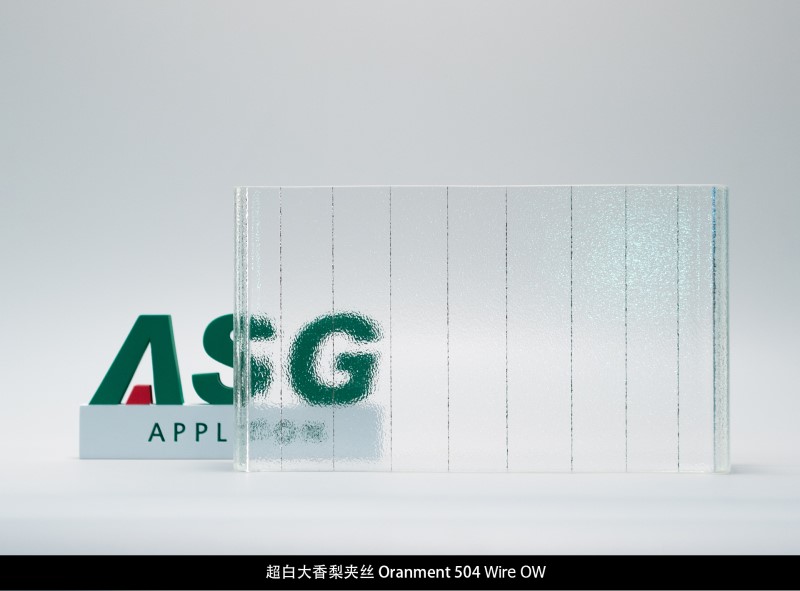

Oranment 504 Wire OW | Oranment 504 Wire OW Opal | Clear Oranment 504 Wire |
Production Line | Production Line | Installation Effect |
Product Selection Form:
Model | K22/60/7 | K25/60/7 | K32/60/7 | K25/60/7 wave | K50/60/7 | K25/90/8 | K32/90/8 | |
Size | Width b (mm) | 232 | 262 | 331 | 262 | 498 | 262 | 331 |
Flange Height h (mm) | 60 | 60 | 60 | 60 | 60 | 90 | 90 | |
Thickness d (mm) | 7 | 7 | 7 | 7 | 7 | 8 | 8 | |
Weight(single) kg/㎡ | 25.5 | 24.5 | 22.5 | 24.5 | 21.2 | 32.5 | 29.9 | |
Maximum Supply Length Lmax (mm) | 7000 | 7000 | 7000 | 7000 | 5000 | 8000 | 8000 | |
Oranment 504 Wire | Number of wires | 7 | 8 | 10 | 8 | 16 | 8 | 10 |
16 wires | - | ● | - | - | - | ● | - | |
8+2 wire* | - | ○ | - | - | - | - | - | |
Low-e/Antisol Oranment 504 | Plus 1.7 | ● | ● | ● | ● | ● | ● | ● |
Plus 1.7 wire | ● | ● | ● | ● | ● | ● | ● | |
Antisol | ● | ● | ● | ● | ● | ● | ● | |
Antisol wire | ● | ● | ● | ● | ● | ● | ● | |
Color/ Pattern/ Design | Amethyst | ● | ● | ● | ● | ● | ● | ● |
Amethyst wire | ● | ● | ● | ● | ● | ● | ● | |
Smooth* | ○ | - | - | - | - | - | - | |
Smooth wire* | ○ | - | - | - | - | - | - | |
Micro* | ● | ● | ● | ● | ● | ● | ● | |
Micro wire* | ● | ● | ● | ● | ● | ● | ● | |
Macro* | ○ | ● | - | - | - | - | - | |
Slim line* | ○ | ● | - | - | - | - | - | |
Opal | ● | ● | ● | ● | ● | ● | ● | |
Temper |
Temper*
Temper and Homogeneous* | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
Temper Enamelled◆
Temper and Homogeneous Enamelled | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
● Regular production * Optional coating(Amethyst, Antisol, Plus 1.7) ◆ Lmax=4.5 ○ Optional products
