CLEAR (GREEN) CHANNEL GLASS
Appleton Uniprof™ Clear offers a translucent linear channel glazing system designed to facilitate the passage of light in both interior and exterior applications. Comprising an extruded perimeter frame and self-supporting cast glass channels with a standard iron oxide content of 800-1200 ppm, it provides a mild light and solar transmission characteristic of standard glass. This results in a green hue inherent to the glass.
Available in Standard Cast and Wired textures, Appleton Uniprof™ Clear can also be customized with coatings such as Low-E, Antisol, and Amethyst for enhanced performance. For added privacy, sandblasting options are available.
Standard Cast: Standard channel glass has an inherent slight green hue.
CHANNEL GLAZING SYSTEM
The Appleton Uniprof™ translucent linear channel glazing system consists of unique, self-supporting cast glass channels and an extruded metal perimeter frame that allow for the passage of light without the loss of privacy. Appleton Uniprof™ can be used in interior or exterior applications. The "U-shaped" channels can be installed either vertically or horizontally.
The glass is available in a variety of colors and textures with varying translucency. Appleton Uniprof™ is energy efficient, provides excellent sound reduction, and it is one of the most cost-efficient glass wall systems available. It can be single or dual glazed for interior use or dual glazed for exterior applications.
The Appleton Uniprof™ glazing system includes channel glass, PVC inlay, aluminum profiles, and other accessories. Click on our accessories page to find out more about the types and dimensions of accessories. You can also download drawings from the drawing page to learn more about the combinations and installation.
Advanced Processing
Building upon the foundation of ultra-clear U-shaped glass, additional processing options are available based on requirements. Appleton offers a variety of choices including sandblasting/Opal, wired, coating, and enamelled.
Features
Self-supporting cast glass channels
Extruded metal perimeter frame for structural support
Allows passage of light without loss of privacy
Suitable for both interior and exterior applications
Application and use in Construction
Facades, Exterior / Outdoor, Interior, Partitions
Thermal Performance
When installed in a double layer, the thermal transmittance coefficient (U-value) is 2.8. For higher thermal insulation requirements, low-e channel glass can be selected.
Dimensions
In most cases, Appleton's U glass lengths can meet the requirements of the vast majority of projects. The standard length of U glass in our inventory is 7 meters. Pre-tempered outdoor U glass can reach 8 meters, and for longer lengths, custom options are available upon contacting us.
Surface Textures
Oranment 504 (standard)
Wire
 |  |  |
Clear Oranment 504 | Clear Oranment 504 Wire |
Clear Micro Wire |
 |  |  |
Clear Oranment 504 Opal |
Clear Oranment 504 Wire Opal |
Clear Oranment 504 Plus 1.7 |

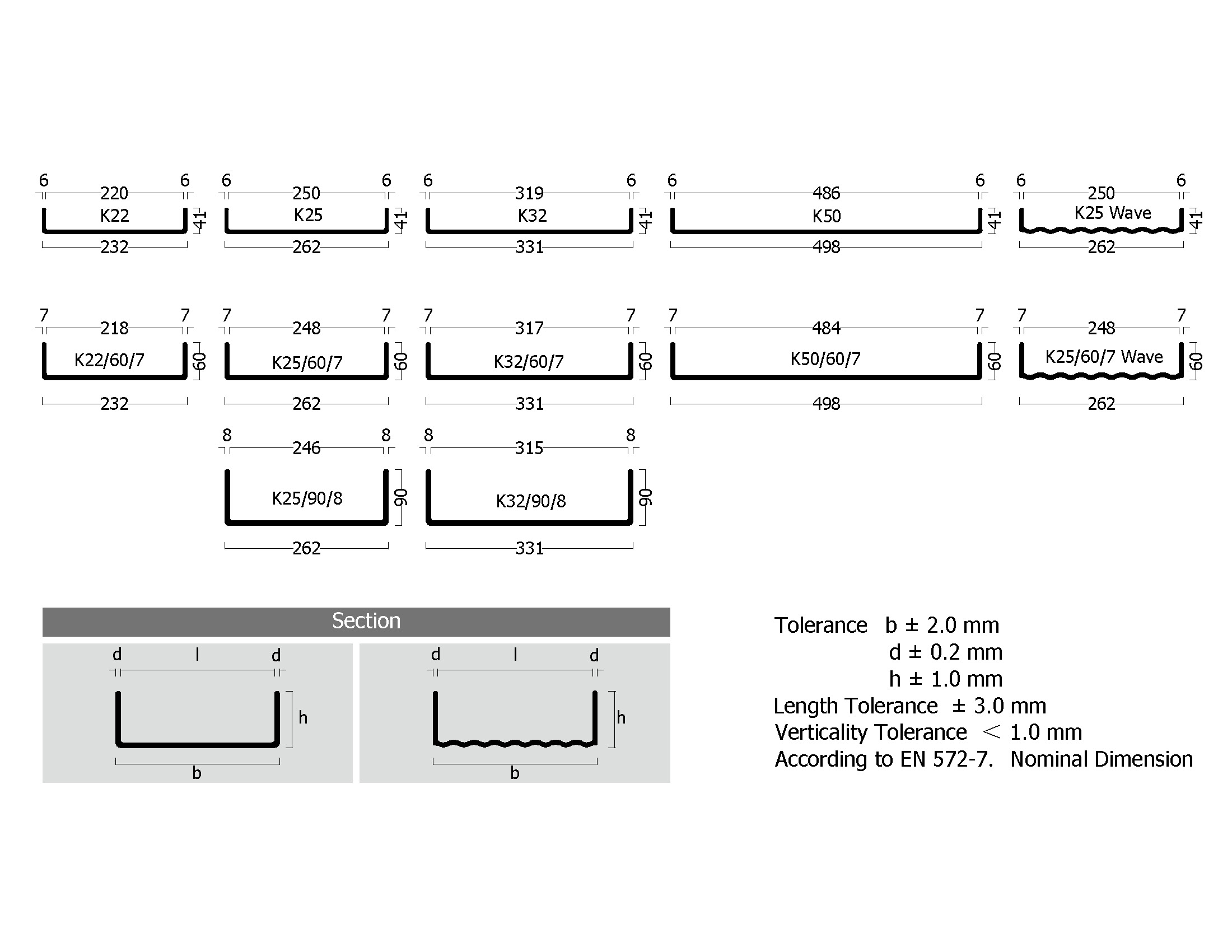

| Model | K22/60/7 | K25/60/7 | K32/60/7 | K25/60/7 wave | K50/60/7 | K25/90/8 | K32/90/8 | |
| Size | Width b (mm) | 232 | 262 | 331 | 262 | 498 | 262 | 331 |
| Flange Height h (mm) | 60 | 60 | 60 | 60 | 60 | 90 | 90 | |
| Thickness d (mm) | 7 | 7 | 7 | 7 | 7 | 8 | 8 | |
| Weight(single) kg/㎡ | 25.5 | 24.5 | 22.5 | 24.5 | 21.2 | 32.5 | 29.9 | |
| Maximum Supply Length Lmax (mm) | 7000 | 7000 | 7000 | 7000 | 5000 | 8000 | 8000 | |
| Oranment 504 Wire | Number of wires | 7 | 8 | 10 | 8 | 16 | 8 | 10 |
| 16 wires | - | ● | - | - | - | ● | - | |
| 8+2 wire* | - | ○ | - | - | - | - | - | |
Low-e/Antisol Oranment 504 | Plus 1.7 | ● | ● | ● | ● | ● | ● | ● |
| Plus 1.7 wire | ● | ● | ● | ● | ● | ● | ● | |
| Antisol | ● | ● | ● | ● | ● | ● | ● | |
| Antisol wire | ● | ● | ● | ● | ● | ● | ● | |
| Color/ Pattern/ Design | Amethyst | ● | ● | ● | ● | ● | ● | ● |
| Amethyst wire | ● | ● | ● | ● | ● | ● | ● | |
| Smooth* | ○ | - | - | - | - | - | - | |
| Smooth wire* | ○ | - | - | - | - | - | - | |
| Micro* | ● | ● | ● | ● | ● | ● | ● | |
| Micro wire* | ● | ● | ● | ● | ● | ● | ● | |
| Macro* | ○ | ● | - | - | - | - | - | |
| Slim line* | ○ | ● | - | - | - | - | - | |
| Opal | ● | ● | ● | ● | ● | ● | ● | |
| Temper |
Temper*
Temper and Homogeneous* | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
Temper Enamelled◆
Temper and Homogeneous Enamelled | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
