The Low-E coating layer has the characteristics of high transmission of visible light and high reflection of mid- and far-infrared rays. It can reduce heat entering the room in summer, and increase the insulation rate in winter to reduce heat loss, thereby reducing air-conditioning operating costs.

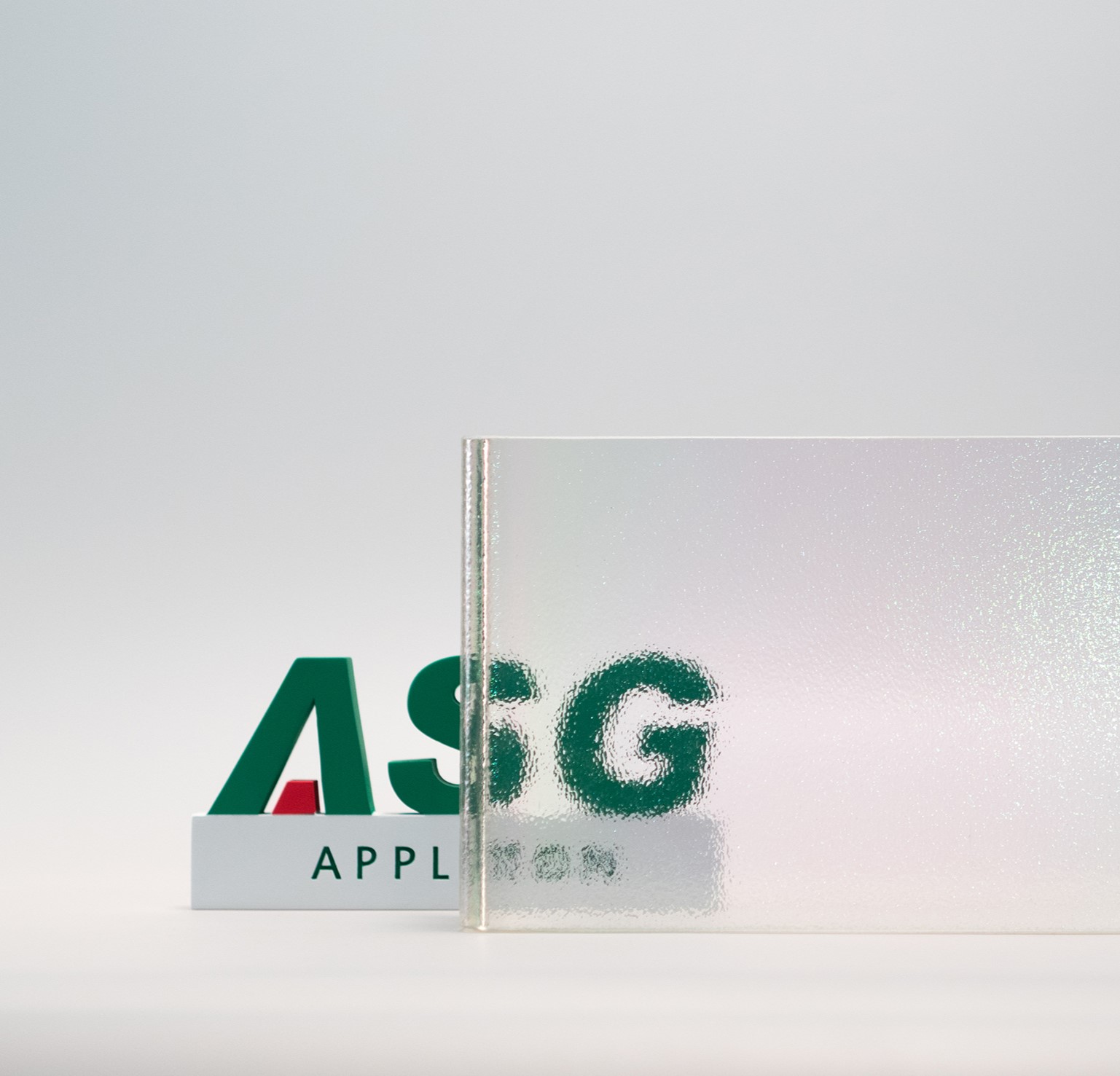

The product model of Appleton Low-E coated U profiled glass is "Plus 1.7". The Ug value of this type of U channel glass when double glazing can reach 1.8W/m2K, in addition to having a certain effect of blocking ultraviolet rays.
Feature Description：
 | Environmental Protection |
| Maintain eco-friendly and benefit the environment | |
 | Energy Efficient |
| Maintain temperature and reduce heat conduction | |
 | Durable |
| High temperature coloring process | |
 | Sizes |
| Various sizes of U channel glass | |
 | Shapes |
| Can be cut to fit your design |

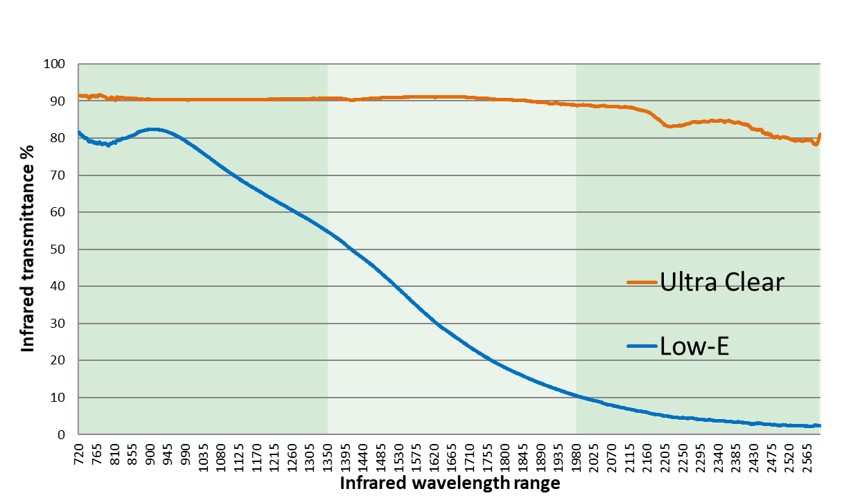

Schematic diagram of performance curve
The blocking performance of Low-E U channel glass to infrared rays is shown as below:
It can be seen from the diagram that compared to Ultra Clear channel glass, Low-E channel glass has excellent performance in blocking infrared, especially far-infrared,. This is also the main reason why Low-E channel glass can reduce heat conduction.
Coated U glass usually adopts double glazing or triple glazing, the schematic diagram is as follows:
The detailed parameters of different installation methods are as follows：
| Installation Method | Diagram | Ug(W/㎡K) | g | Transmittance(%) | |
| Clear | Single Uncoated | × | 5.7 | 0.79 | 86 |
| Uncoated+Uncoated | × | 2.8 | 0.68 | 75 | |
| Uncoated+Low-e | 1 | 1.8 | 0.63 | 70 | |
| Antisol+Uncoated | 2 | 2.8 | 0.49 | 43 | |
| Antisol+Low-e | 3 | 1.8 | 0.45 | 41 | |
| Amethyst+Amethyst | 3 | 2.8 | 0.46 | 40 | |
| Amethyst+Low-e | 3 | 1.8 | 0.49 | 51 | |
| Citrine+Citrine | 3 | 2.8 | 0.48 | 38 | |
| Citrine+Low-e | 3 | 1.8 | 0.54 | 45 | |
| Uncoated+Low-e+Low-e | 4 | 1.1 | 0.51 | 52 | |
| Ultra Clear | Single Uncoated | × | 5.7 | 0.92 | 92 |
| Uncoated+Uncoated | × | 2.8 | 0.85 | 85 | |
| Uncoated+Low-e | 1 | 1.8 | 0.78 | 75 | |
| Antisol+Uncoated | 2 | 2.8 | N/A | N/A | |
| Antisol+Low-e | 3 | 1.8 | N/A | N/A | |
| Amethyst+Amethyst | 3 | 2.8 | 0.49 | 48 | |
| Amethyst+Low-e | 3 | 1.8 | 0.55 | 53 | |
| Citrine+Citrine | 3 | 2.8 | 0.57 | 46 | |
| Citrine+Low-e | 3 | 1.8 | 0.60 | 47 | |
| Uncoated+Low-e+Low-e | 4 | 1.1 | 0.56 | 54 |
The Ug value is determined according to the European standard EN673.
The g value and light transmittance are according to the European standard EN410.
