Installation Components of Appleton Uniprof™ Channel Glass System
Appleton provides a comprehensive range of installation components for the Uniprof™ channel glass system. These components are designed to ensure optimal performance, durability, and aesthetic integration in diverse architectural applications. Below is an overview of the main installation elements and their features.

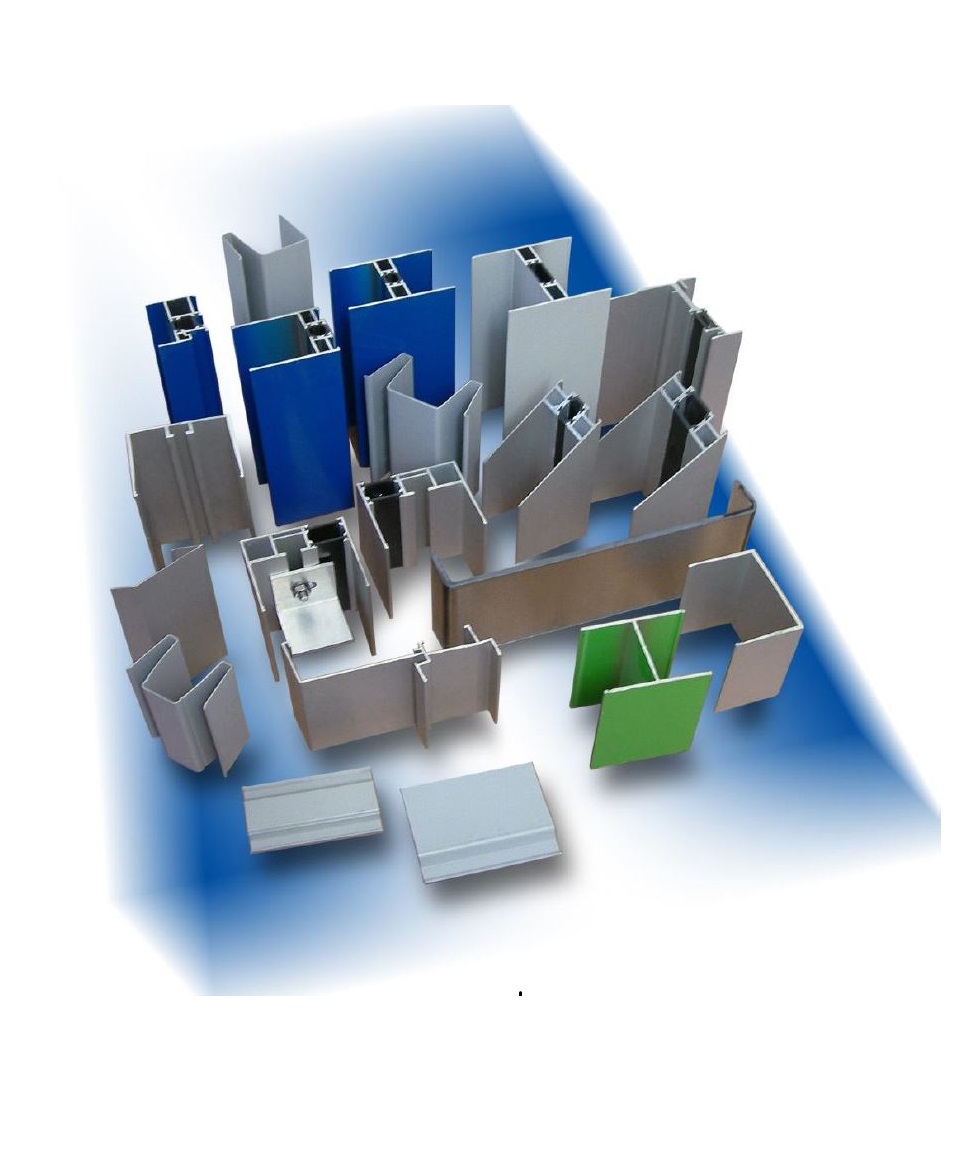

Aluminium Frame Profiles
Appleton offers a variety of aluminum frame profiles designed for compatibility with different Uniprof™ channel glass configurations. These profiles ensure precise installation and superior performance.
Bottom Profiles:
- Available with or without molded windowsills in various reaches.
- Offer robust support and alignment for channel glass installations.
Top and Side Profiles:
- Provided in multiple designs, including standard, reinforced, and extended, to meet varying project requirements.
- Special profiles are available for unique glazing scenarios, such as push-in systems, horizontal glazing, and curved structures.
Customization:
Profiles can be tailored for specific architectural demands, subject to project schedule and budget considerations.
Thermal Insulation
Most aluminum frame profiles are available with or without thermal breaks to suit varying energy efficiency requirements. These profiles enhance thermal performance while maintaining structural integrity.
Surface Design
All profiles can be finished in a variety of designs, including:
- Plain-Pressed
- Anodized
- RAL Powder Coated
Custom colors are available upon request, ensuring seamless integration with project aesthetics.
Curved Profiles for Aesthetic Variants
For projects requiring unique aesthetics, curved profiles are available:
- Bottom profiles can be curved without molded windowsills.
Curved profiles are subject to minimum quantity and radius requirements. For detailed specifications, please consult our sales department.

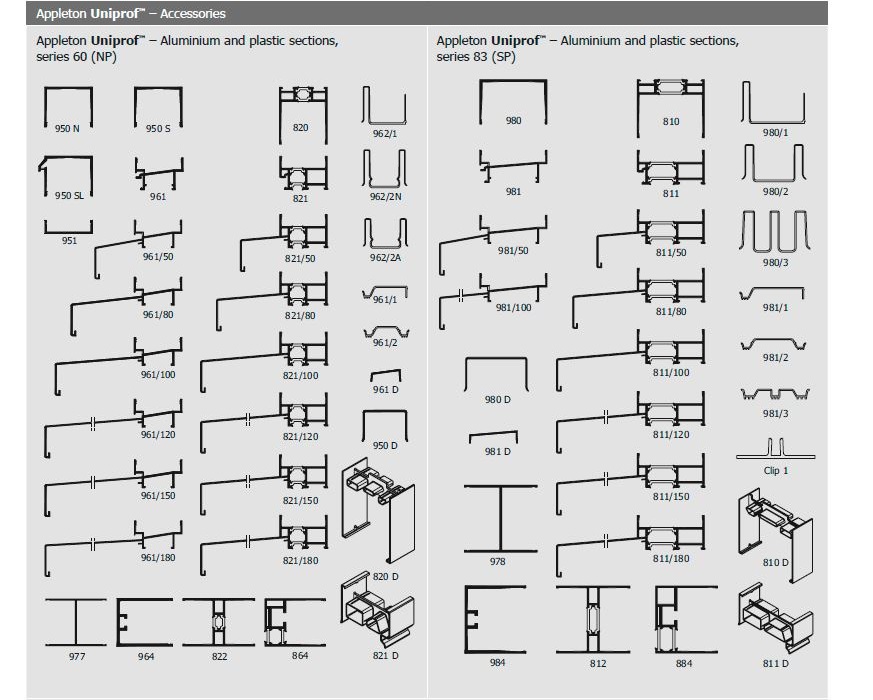

Section View and Dimensions
Quality Assurance
All Appleton aluminum framing profiles are manufactured to the strictest quality standards. In addition to traditional aluminum profiles, Appleton offers thermally insulated profiles featuring advanced polyamide cores, delivering:
- Temperature resistance up to 200°C.
- Ease of subsequent coating or painting.
Enhanced aesthetics and energy efficiency.
Accessory Combinations
There are several combinations available for using these accessories and components. Visit this page to explore a variety of typical accessory combinations displayed in 3D images, offering a detailed view of their applications and configurations.
Additional Installation Components
Appleton supplies a range of complementary installation components to support the Uniprof™ channel glass system, including:
- Fixing Media: Provided by recognized specialist firms.
- Sealants and Gaskets: Designed to maintain weatherproof and airtight installations.
- Accessories: Including spacers, mounting brackets, and additional installation aids.
