- The product description
- The main function
- The basic parameters

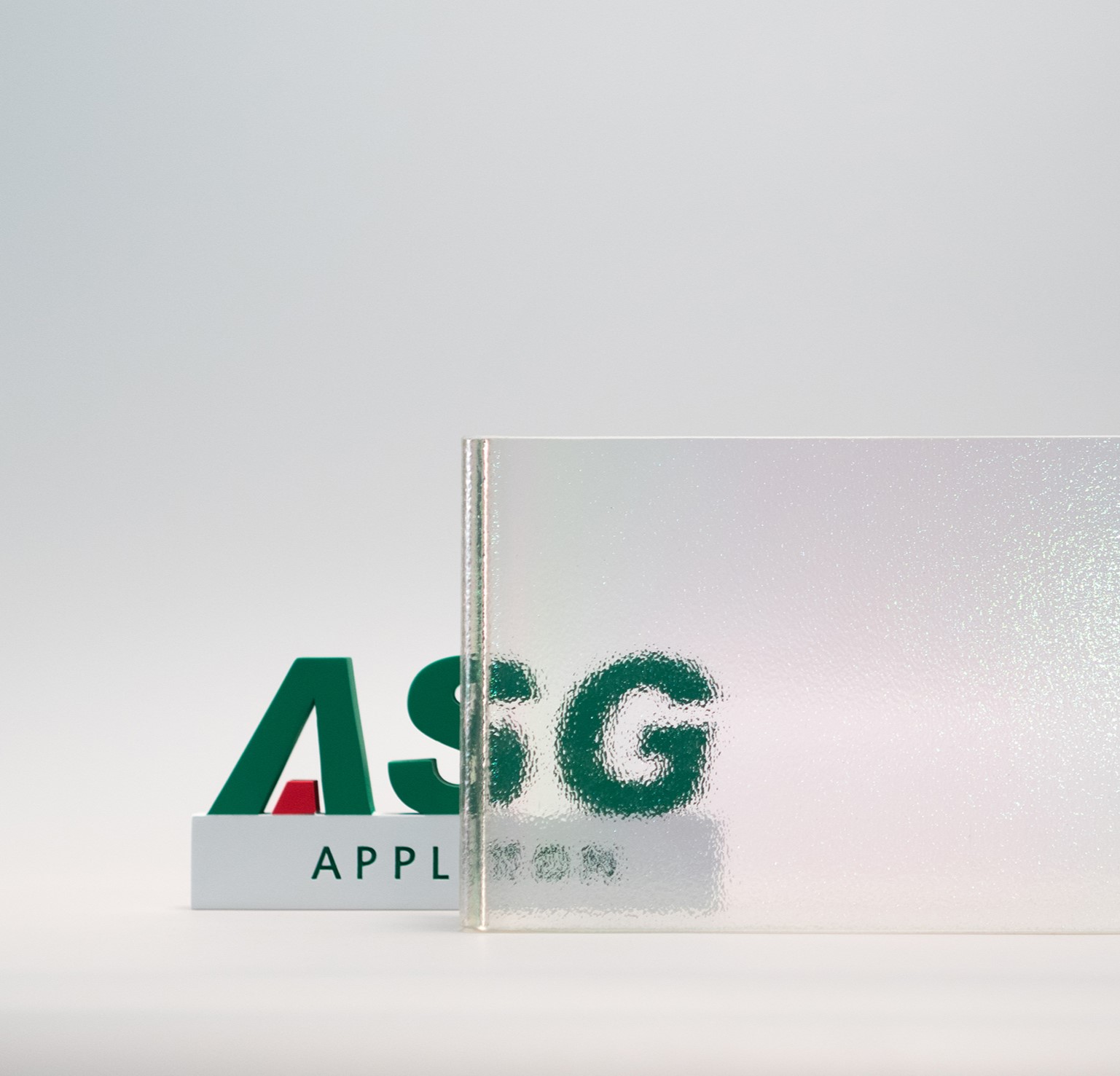

The Antisol U profiled glass of Appleton "Uniprof™" series has an excellent effect of blocking ultraviolet rays, and the ultraviolet transmittance is only 28%, which can significantly slow down the fading of indoor textiles and household products and extend the service life. At the same time, the shielding coefficient of this type channel glass is 0.67, while the shielding coefficient of clear channel glass is 0.82, so it can effectively reduce outdoor glare, avoid binocular discomfort, and enhance comfort. In addition, AntIsol U channel glass has a certain function of blocking infrared rays.
Features：
 |
Environmental Friendly |
| Maintain eco-friendly and benefit the environment | |
 |
Energy Saving |
| Maintain temperature and reduce heat conduction | |
 |
Durability |
| High temperature coloring process | |
 |
Sizes |
| Various sizes of U channel glass | |
 |
Shapes |
|
Can be cut to fit your design |

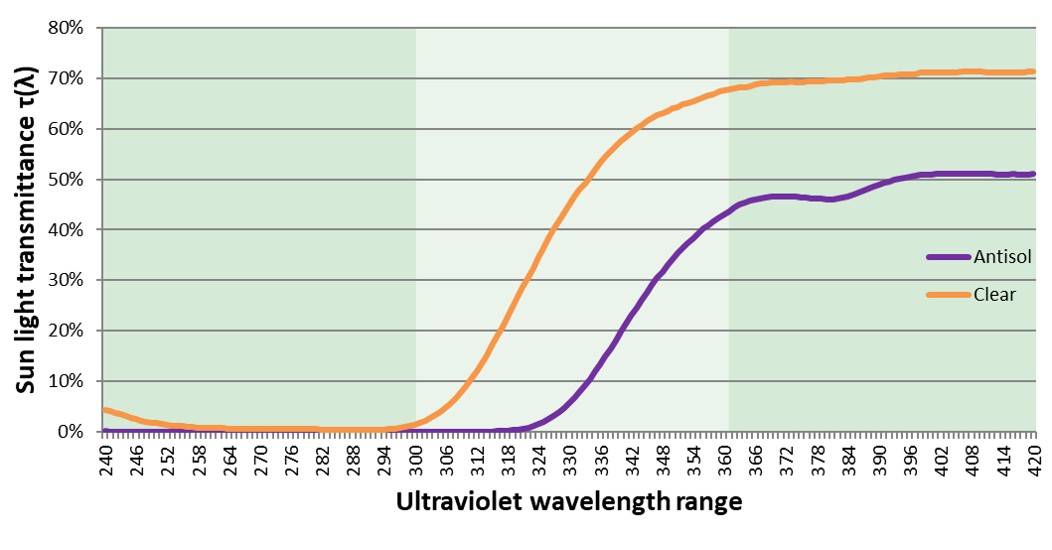

Schematic diagram of performance curve
The UV blocking performance of Antisol U profiled glass is shown as follow:
As the diagram shows, Compared to clear channel glass, Antisol U profiled glass has a significant function of reducing ultraviolet radiation. In fact, through spectrophotometer measurement and calculation, the ultraviolet transmittance of clear U channel glass is 47%, while the ultraviolet transmittance of Antisol U channel glass is only 28%.
Installation Method:
Coated U glass usually adopts double glazing or triple glazing, the schematic diagram is as follows:
Coated U glass usually adopts double glazing or triple glazing, the schematic diagram is as follows:
The detailed parameters of different installation methods are as follows：
| Installation Method | Diagram | Ug(W/㎡K) | g | Transmittance(%) | |
| Clear | Single Uncoated | × | 5.7 | 0.79 | 86 |
| Uncoated+Uncoated | × | 2.8 | 0.68 | 75 | |
| Uncoated+Low-e | 1 | 1.8 | 0.63 | 70 | |
| Antisol+Uncoated | 2 | 2.8 | 0.49 | 43 | |
| Antisol+Low-e | 3 | 1.8 | 0.45 | 41 | |
| Amethyst+Amethyst | 3 | 2.8 | 0.46 | 40 | |
| Amethyst+Low-e | 3 | 1.8 | 0.49 | 51 | |
| Citrine+Citrine | 3 | 2.8 | 0.48 | 38 | |
| Citrine+Low-e | 3 | 1.8 | 0.54 | 45 | |
| Uncoated+Low-e+Low-e | 4 | 1.1 | 0.51 | 52 | |
| Low Iron | Single Uncoated | × | 5.7 | 0.92 | 92 |
| Uncoated+Uncoated | × | 2.8 | 0.85 | 85 | |
| Uncoated+Low-e | 1 | 1.8 | 0.78 | 75 | |
| Antisol+Uncoated | 2 | 2.8 | N/A | N/A | |
| Antisol+Low-e | 3 | 1.8 | N/A | N/A | |
| Amethyst+Amethyst | 3 | 2.8 | 0.49 | 48 | |
| Amethyst+Low-e | 3 | 1.8 | 0.55 | 53 | |
| Citrine+Citrine | 3 | 2.8 | 0.57 | 46 | |
| Citrine+Low-e | 3 | 1.8 | 0.60 | 47 | |
| Uncoated+Low-e+Low-e | 4 | 1.1 | 0.56 | 54 |
The Ug value is determined according to the European standard EN673.
The g value and light transmittance are according to the European standard EN410.
Excellent blocking effect of ultraviolet rays
UV transmittance is only 28%
